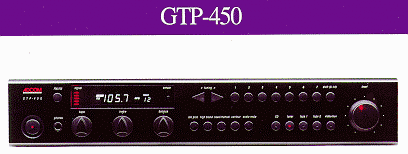

GTP-450


GTP-450

The GTP-450 is sonically superior to many separate preamplifier and tuner combinations that cost 2, 3, even 5 times more. A value that is typical of Adcom components.

To meet the exceedingly high standards and design objectives, the GTP-450 displays that same state-of-the-art component parts that Adcom engineers have implemented in their award-winning separates, including proprietary linear gain amplifiers, polypropylene capacitors, low-loss printed circuit boards, and 1% metal film resistors.

The same Class "A" high level output circuitry specified by audio perfectionists in the 'price is no object' stratosphere benefits the GTP-450 as well. It responds more accurately to the musical input and is largely responsible for the clarity, superior resolution and soundstage accuracy for which Adcom performance is known.

FM reproduction is station-monitor quality, the highest standard the broadcast signal allows, thanks to an all-new, specifically built multiplex decoder that minimizes noise and hum without sacrificing stereo separation or compressing the dynamic range of the music.

Sonic excellence doesn't come at the expense of control flexibility, however. A full-function wireless remote control is standard and extends input selection, tuning and volume adjustments to the comfort of your listening position. You can even turn the entire system's power on and off.

Don't hesitate to compare the Adcom GTP-450 to the most expensive separate preamps and tuners available. Then evaluate its flexibility next to the most fully-featured control centers you can find. You'll see and hear the Adcom difference. It's in the details.


Adcom GTP-450 Technical Specifications

Preamplifier Section

Output impedance
Main Outputs 475 ohms
Tape Outputs 500 ohms

Output Level (Rated) .....1.0V

Input impedance .....25 kohms

Frequency Response
20Hz to 20kHz.....±0.5dB

THD+N at Rated Output
20Hz to 20kHz.....<0.0075%

IM Distortion
SMPTE.....<0.009%
CCIF from 4kHz to 20kHz .....<0.001%

Signal to Noise Ratio (Ref. to 1 volt) "A" Weighted .....<95dB

Tone Controls
Bass.....±12dB
Treble.....±8dB

FM Tuner Section

Usable Sensitivity (Mono) .....3uV/15 dBf

Quieting Sensitivity (50dB)
Mono.....3.4 uV/22 dBf
Stereo.....31 uV/41 dBf

Signal To Noise (65dBf, "A" weighted)
Mono.....78dB
Stereo.....67dB

THD+N (1kHz, 65dBf)
Mono......0.085%
Stereo.....0.095%

Capture Ratio.....2.5dB

Alternate Channel Sensitivity ( ±400kHz).....>75dB

Separation (at 1 kHz).....>50dB

Frequency Response (±0.5dB).....30Hz to 15kHz

AM Tuner Section

Sensitivity .....300uV/m

Selectivity (+-10kHz) .....>40dB

Signal To Noise (5mV/m "A" Weighted) .....>45dB

General

Power (available in 220v or 240V special order)
120VAC/50-60Hz

Chassis Dimensions
3"(76mm) x 17"(432mm) x 11 1/2"(292mm)

Maximum Dimensions
3 1/4"(3mm) x 17" (432mm) x 12 1/4"(324mm)

Weight .....14 lbs.(6.3kg)

Weight, Packed .....16.5 lbs.(7.5kg)
